Detroit Diesel Series 60 (600HP) Complete Radiator
$5,989.17

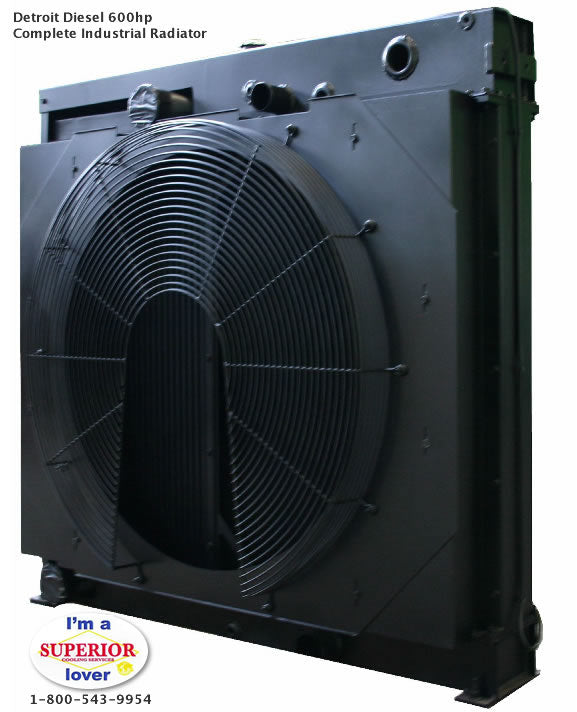

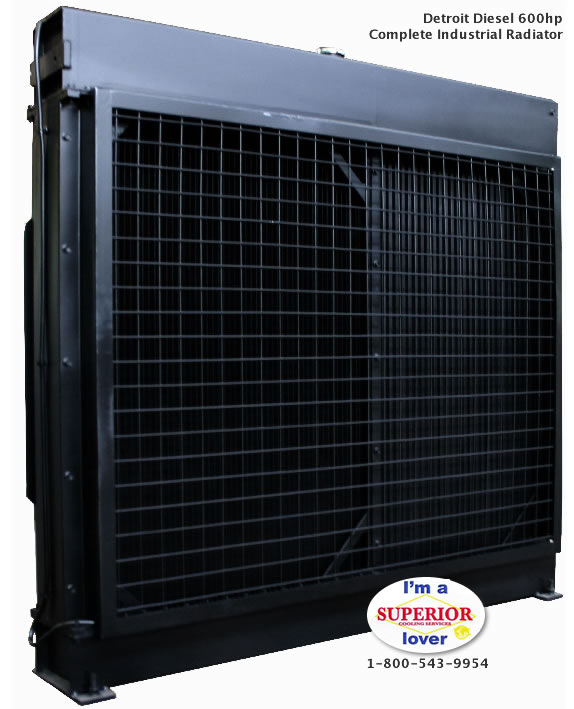

Detroit Diesel Series 60 (600HP) - Complete Industrial Radiator
All-Metal Radiator (Bolt-on Tanks)
| Core Dimensions (between the headers, core surface ONLY) | Radiator Overall Dimensions (Include Tanks & Brackets) | |||||||||
| Core Height | Core Width | Core Depth | Rows | FPI | Overall Height | Overall Width | Inlet Connection | Outlet Connection | Remarks | |
| RAD: 43" CAC: 43" |
31" 24" |
3 1/16" 4 15/16" |
4 1 |
14 12 |
55 1/2" | 55" | 2 1/2" 4" |
3" 4" |
Gen Set 600HP |
|
| MODEL | Price | DESCRIPTION | ||||||||
| SCSI-7977 | Call For Price | Complete Radiator & Charge Air Cooler Package | ||||||||

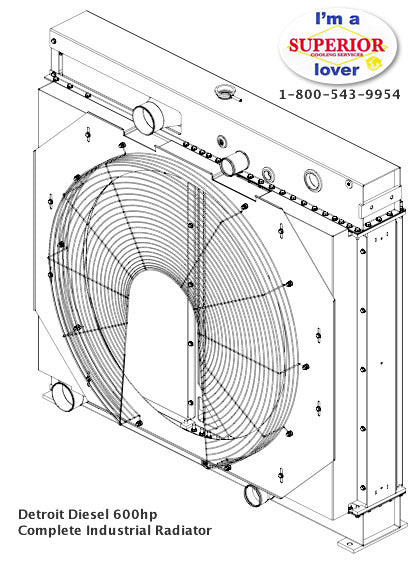

Click drawing for supersize view of specs.
Note: Over-all Height does NOT include Filler Neck.
Dimensions, drawings and illustrations are for reference purposes only.
Superior Radiators™ are not OE parts, but are replacement parts for various manufacturers.
Replacement radiator measurements may vary slightly from OE and other aftermarket manufacturers.
